Why Are High Precision Mold Core Pins the Key to Achieving Perfect Mold Accuracy?

In the world of injection molding and mold design, achieving perfect mold accuracy is essential for producing high-quality, consistent products. One of the key components that ensure mold accuracy is the high precision mold core pin. These small yet vital tools are responsible for creating intricate details in molds, such as cavities and shapes that are crucial for product functionality. In this article, we will explore why high precision mold core pins are indispensable for mold accuracy and how they contribute to the overall quality of manufactured parts.

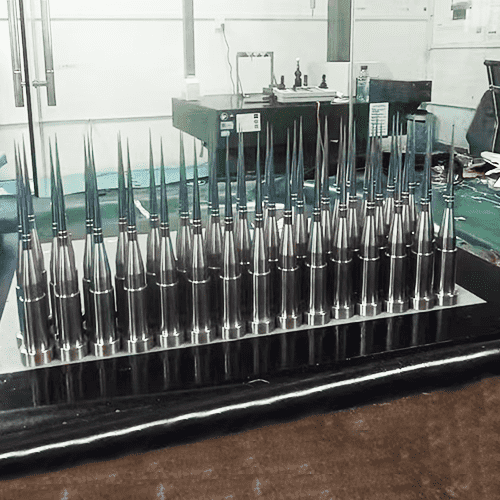

High Precision Mold Core Pins manufacturers.png

1. What Are High Precision Mold Core Pins?

A high precision mold core pin is a finely crafted, hardened steel component used in injection molds to create specific cavities or recesses. These pins are designed to fit precisely into the mold and are integral to the formation of various features like holes, indentations, and other fine details that define the final product's shape. The precision and quality of these pins directly affect the overall performance and efficiency of the molding process.

2. Ensuring Dimensional Accuracy

The primary function of high precision mold core pins is to ensure that the mold’s cavities and core details are produced with exact dimensional accuracy. Even the slightest deviation in size or shape can lead to defects in the final product, such as warping, uneven surfaces, or improper fits. By using precision-engineered core pins, manufacturers can ensure that each molded part meets the desired specifications with high consistency. High precision core pins are manufactured to extremely tight tolerances, often within a few microns, ensuring that the mold cavities they create are as accurate as possible. This level of precision is especially crucial in industries that demand stringent standards, such as automotive, medical devices, and consumer electronics.

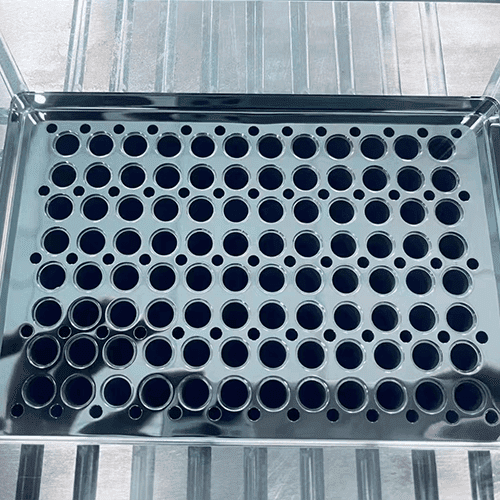

High Precision Mold Core Pins factory.png

3. Improved Mold Longevity

High precision mold core pins are not only about ensuring accuracy during production but also about mold durability. Mold cores experience repeated stress during the injection molding process, which can lead to wear and tear over time. High-quality core pins are designed to withstand these pressures, significantly extending the lifespan of the mold itself.

By using durable core pins made from high-grade materials such as hardened steel or carbide, manufacturers can minimize wear, reduce maintenance costs, and improve the overall efficiency of the molding process. This leads to a more cost-effective manufacturing cycle in the long run.

4. Consistency in Mass Production

In mass production, consistency is key. High precision mold core pins help maintain uniformity across thousands—or even millions—of molded parts. This ensures that each product, regardless of how many are produced, meets the same high standard. Whether it's a small batch or large-scale production, using precision core pins helps prevent variation in molded products that could arise from mold inaccuracies or tooling errors. This consistency also makes it easier to maintain a high rate of first-pass yield, which refers to the number of acceptable parts produced on the first attempt. When the core pins are precisely made, the mold cavities align perfectly, and the end result is a part that fits the specifications without the need for extensive quality control corrections.

5. Reduced Need for Post-Processing

When molds are highly accurate from the start, the need for post-processing work is minimized. Post-processing, such as trimming, polishing, or correcting imperfections, can be costly and time-consuming. With high precision core pins, manufacturers can achieve near-net shapes that require little to no additional processing. This not only speeds up production time but also reduces the overall costs associated with the manufacturing process.

6. Enhanced Product Performance

The accuracy of mold cores directly impacts the performance of the finished product. For example, in industries like medical devices or electronics, even small inaccuracies in mold cavities can affect the functionality of the end product. A slight deviation in the size of an internal cavity or the position of a feature could compromise the integrity or usability of the product. High precision core pins help avoid these risks by ensuring that every part is molded exactly as intended, leading to better-performing products.

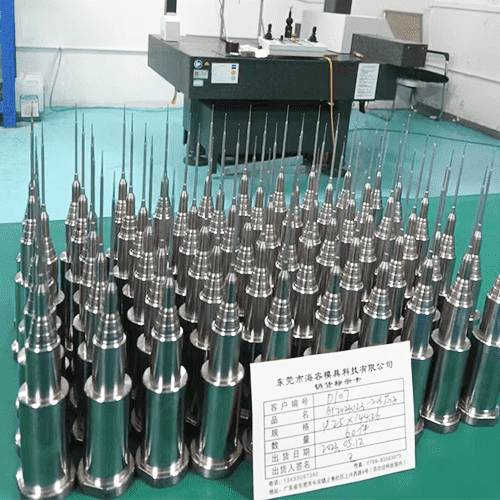

High Precision Mold Core Pins.png

7. Customization for Complex Designs

Modern manufacturing often involves creating complex geometries or multi-functional components that demand high levels of precision. High precision mold core pins are particularly valuable for molding complex designs with intricate details, such as undercuts, thin walls, and fine threads. These features are essential in industries where functionality and design innovation are closely tied, and high-precision core pins make it possible to execute these designs flawlessly.


High precision mold core pins are critical components in achieving perfect mold accuracy. By ensuring dimensional precision, improving mold longevity, maintaining consistency in mass production, and reducing post-processing requirements, these pins play a vital role in producing high-quality parts efficiently. Whether you're manufacturing for automotive, consumer goods, or medical applications, the precision of your core pins will directly impact the success of your molding process.


FAQ:

1. What is the difference between standard mold core pins and high precision mold core pins?

High precision mold core pins are manufactured to tighter tolerances and offer greater accuracy in mold cavity creation. They are made from higher-quality materials and are designed to withstand greater wear, ensuring better performance and longer mold life compared to standard pins.

2. How do high precision mold core pins impact production efficiency?

By ensuring perfect mold accuracy, high precision core pins reduce defects, minimize the need for post-processing, and increase the first-pass yield. This leads to faster production times and fewer defects, improving overall production efficiency.

3. Are high precision mold core pins necessary for all types of molds?

While high precision core pins are essential for molds that require intricate details and high accuracy, they may not be necessary for simpler designs or lower-volume production runs. However, for industries where precision and consistency are critical, they are a must.
